Figure 10

Download original image

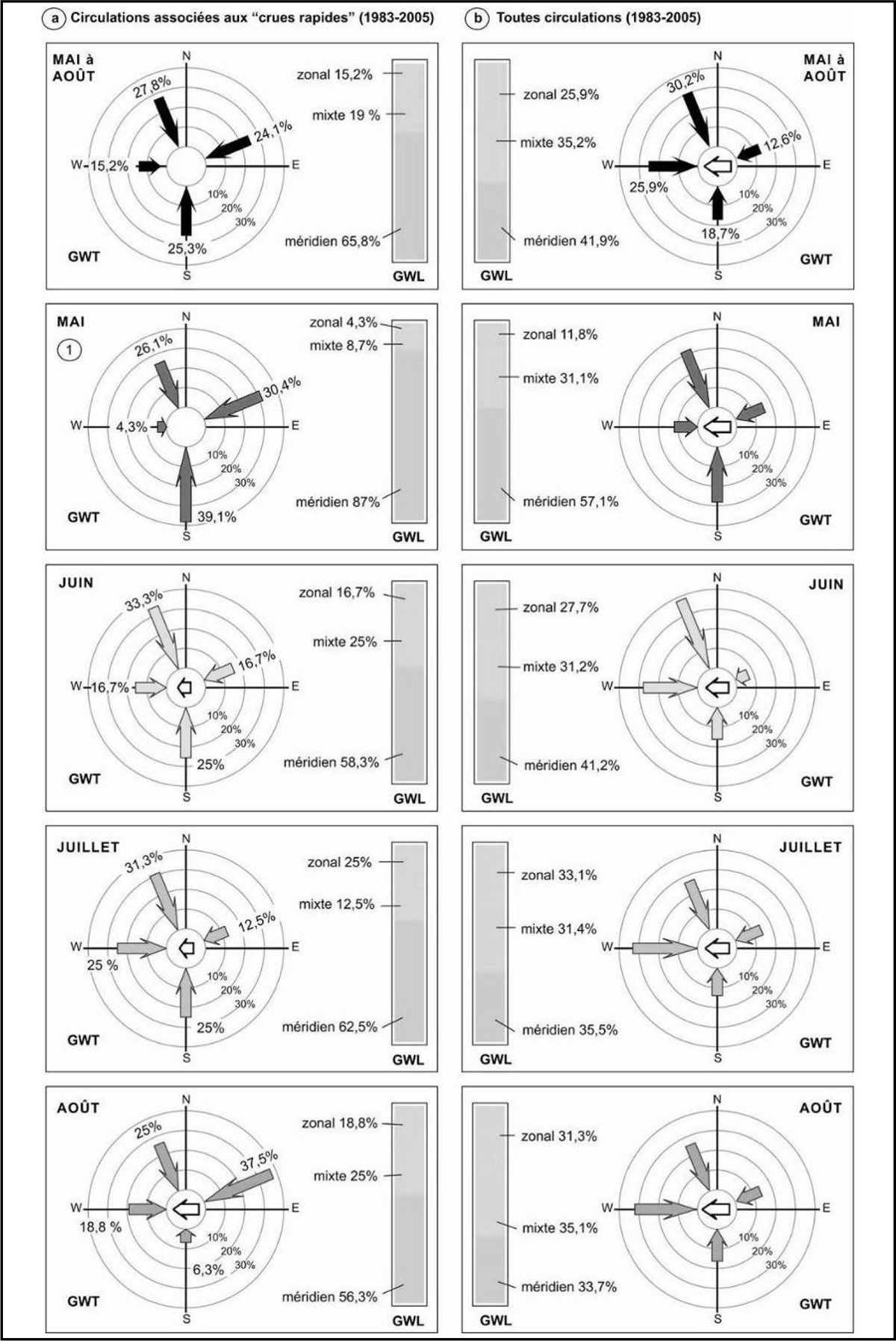

a) Proportion d’événements pluvieux ayant généré des « crues rapides » (1983-2005), pour chaque classe principale de GWL et pour chaque GWT b) Comparaison avec l’ensemble des circulations atmosphériques sur la même période. Représentation des 5 classes de GWT sous forme de flèches orientées (W; NW et N; NE et E; S) et d’une flèche blanche au centre de la rose des vents pour les situations à centre d’action sur l’Europe Centrale (EC). a) Synoptic circulations linked to « flash floods » (1983-2005), classified for each principal type of Grosswetterlagen and Grosswettertyppen, and b) comparison with the atmospheric circulations on the same period. Representation of 5 GWT classes with oriented arrows (W, NW and N, NE, S); the white arrow indicate the action (or not) of Central Europe action.
