Figure 7
Download original image

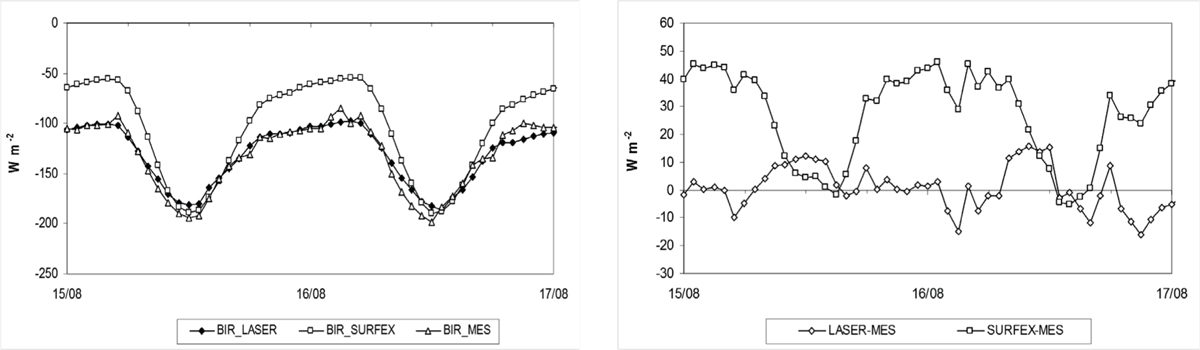

Graphique de gauche : bilan de l’infrarouge simulé par les modèles (BIR_LASER, BIR_SURFEX) comparé à celui qui a été mesuré (BIR_MES). Graphique de droite : écarts constatés entre le bilan de l’infrarouge simulé et mesuré (LASER-MES, SURFEX-MES). Graph on the left: simulated infrared radiation balance (BIR_LASER, BIR_SURFEX) compared to the measurements (BIR_MES). Graph on the right: differences between the simulated and measured infrared radiation balance (LASER-MES, SURFEX-MES).
